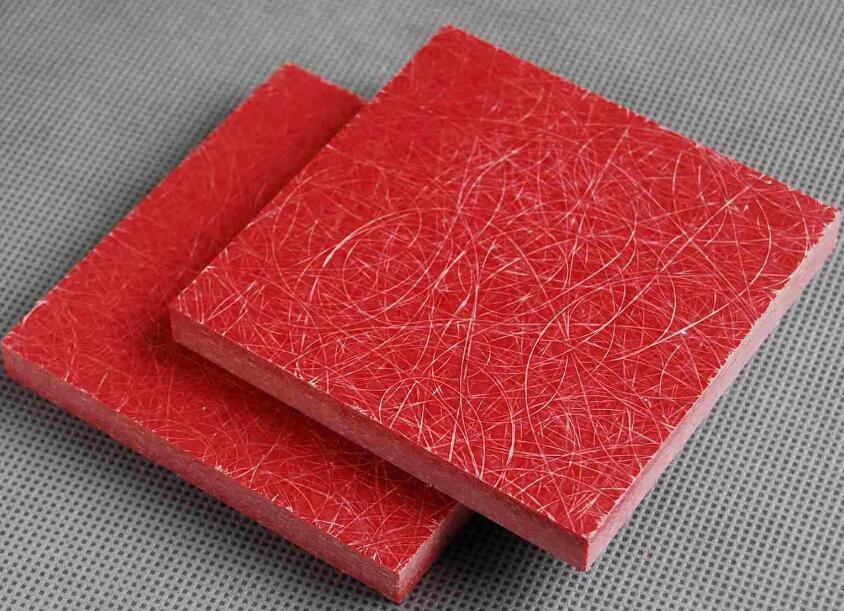

UPGM203/GPO-3

1.the insulating materials in high humidity environment good electrical performance at moderate temperature,

   good mechanical properties, flame retardant, arc resistance and resistance to tracking the characteristics

2. Applications: With high mechanical strength, Insulation, heat

   resistance, electrical properties and good moisture resistance properties. Widely range of applications,

   for example: Suitable for using as insulating structural parts in electric equipment,such as electric generators,

   motors, switch board, etc.

3. Thickness: 0.5-80mm Size:1230x2100mm;1000x2000mm;1200x2500mm

Temperature grade: F glass(155℃)  Color: Red

4. The other size can be supplied according to customers' requests.

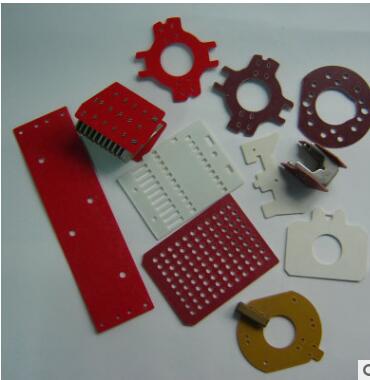

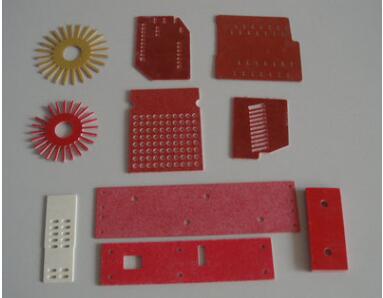

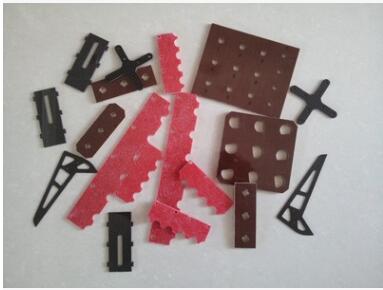

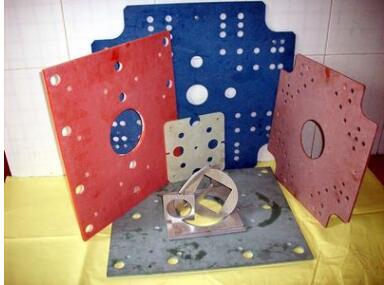

   ※Products can be supplied sheets or shapes according to customer drawing

   ※Note: The values noted in above technical specification are given only for our customers reference and

        should not be used in writing specifications.

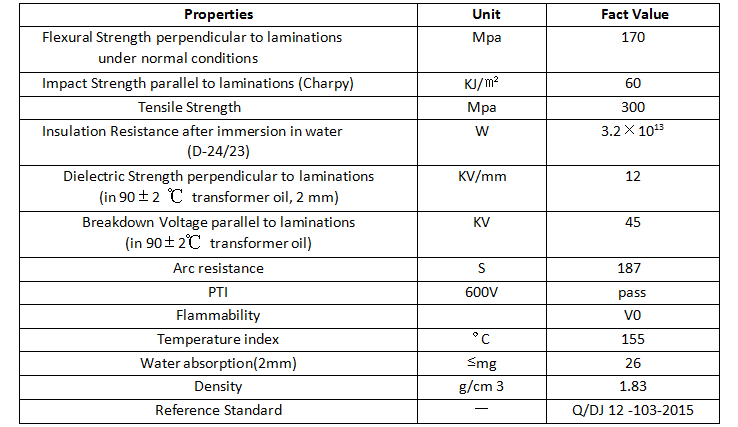

5.Technical data：
