G11 / EPGC203 and FR5 / EPGC204

1.G11 / EPGC203 and FR5 / EPGC204  have extremely high mechanical strength,

  good dielectric properties, good electric strength properties

  and fine heat and humidity resistance.

  In addition, FR5 sheet has anti-fire property.

2.G11 is accordance with the following international standards:

  IEC60893 EPGC203/NEMA LI-1:G11/DIN7735 HGW 2372.4/BS 3953 EP-5

  FR5 is accordance with the following international standards:

  IEC60893 EPGC204/NEMA LI-1:FR5/DIN 7735 HGW 2372.2/BS 3953 EP-6

3.Applications: With high mechanical strength, Insulation, heat resistance, electrical properties

  and good moisture resistance properties. Widely range of applications, for example: Suitable

  for using as insulating structural parts in electric equipment, such as electric generators,

  motors, switch board, PCB, etc.

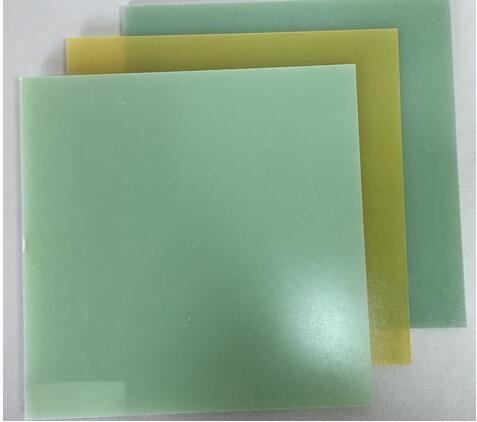

4.Thickness: 0.2-100mm Size: 1000x2000mm; 1200x2400mm;

5.Temperature grade: F glass (155℃)

6.Color:green

7.The other size can be supplied according to customers' requests.

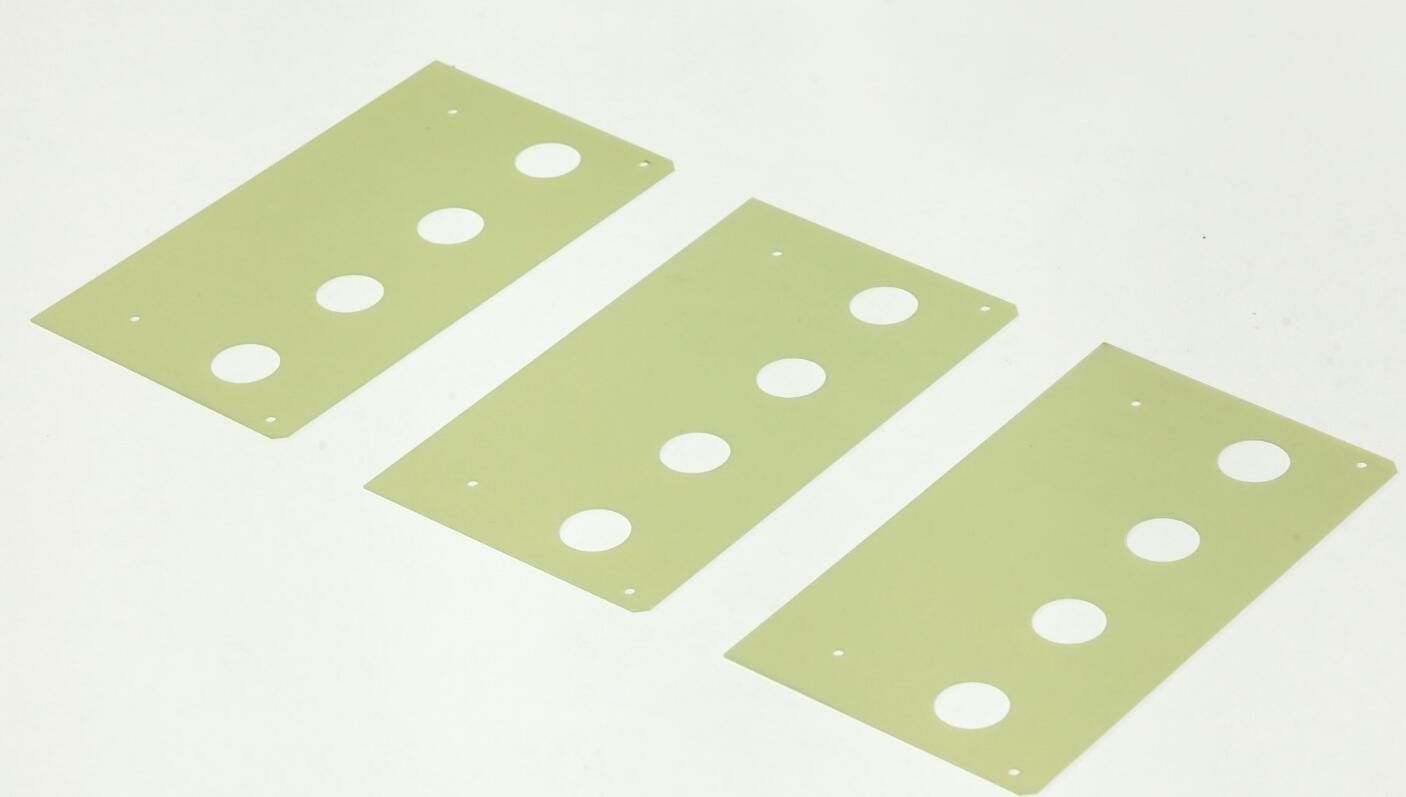

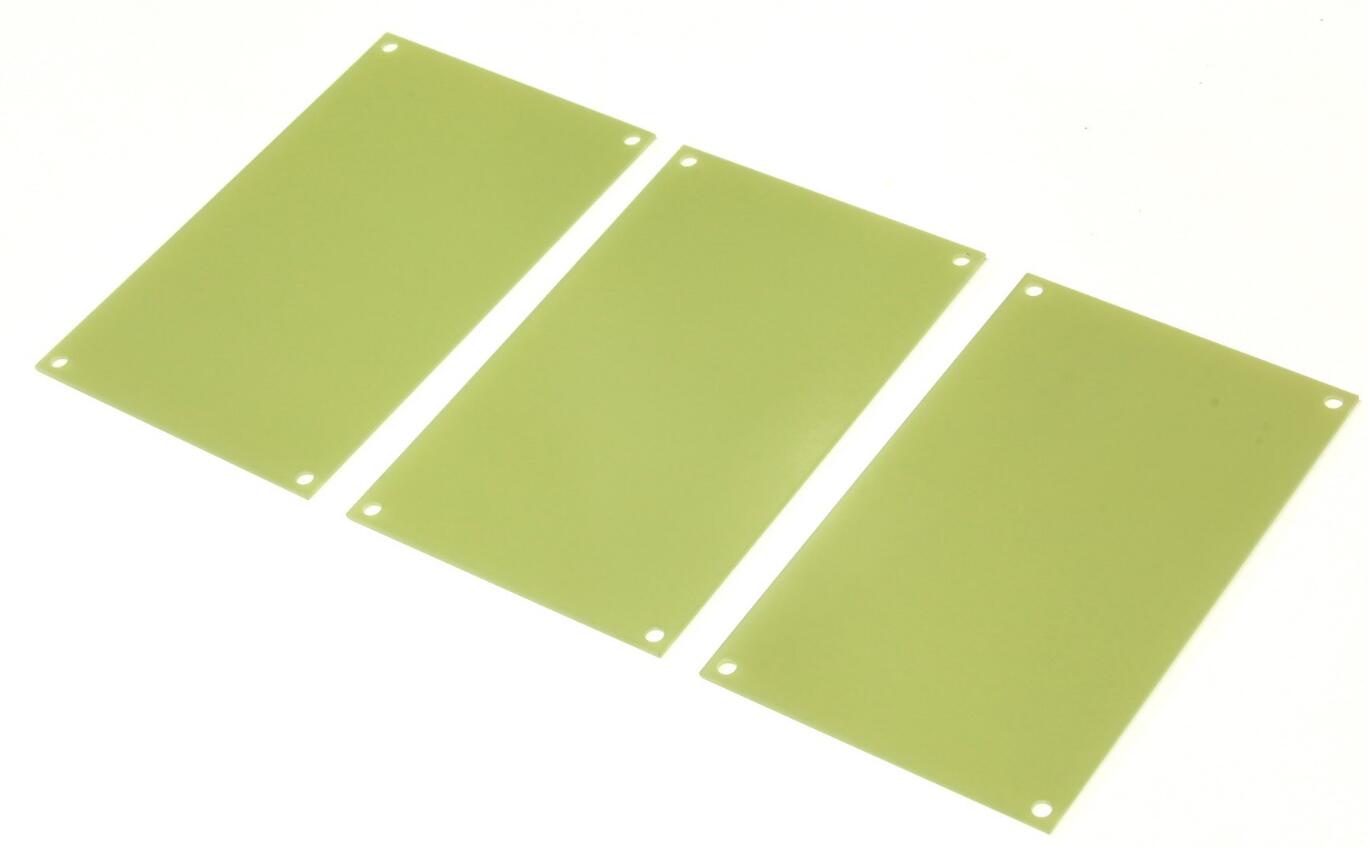

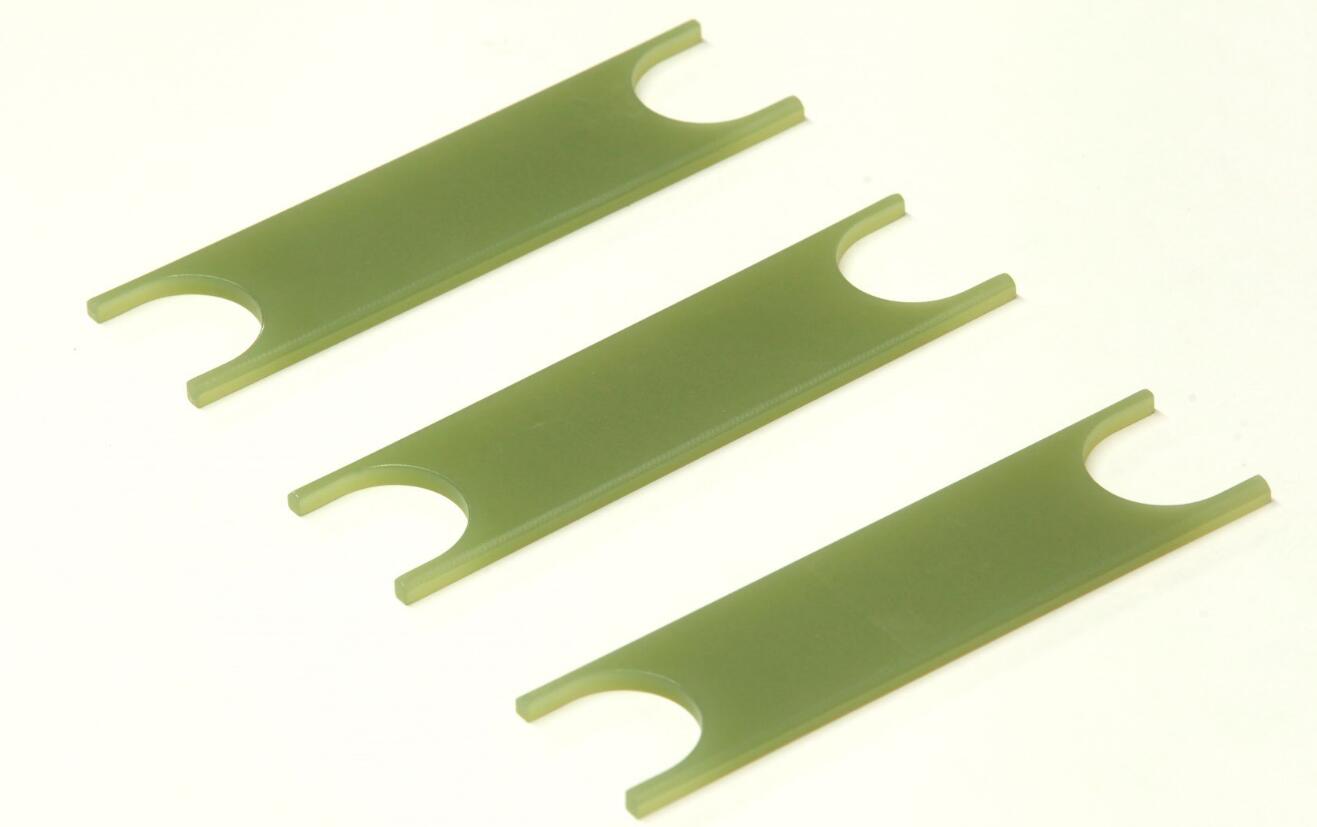

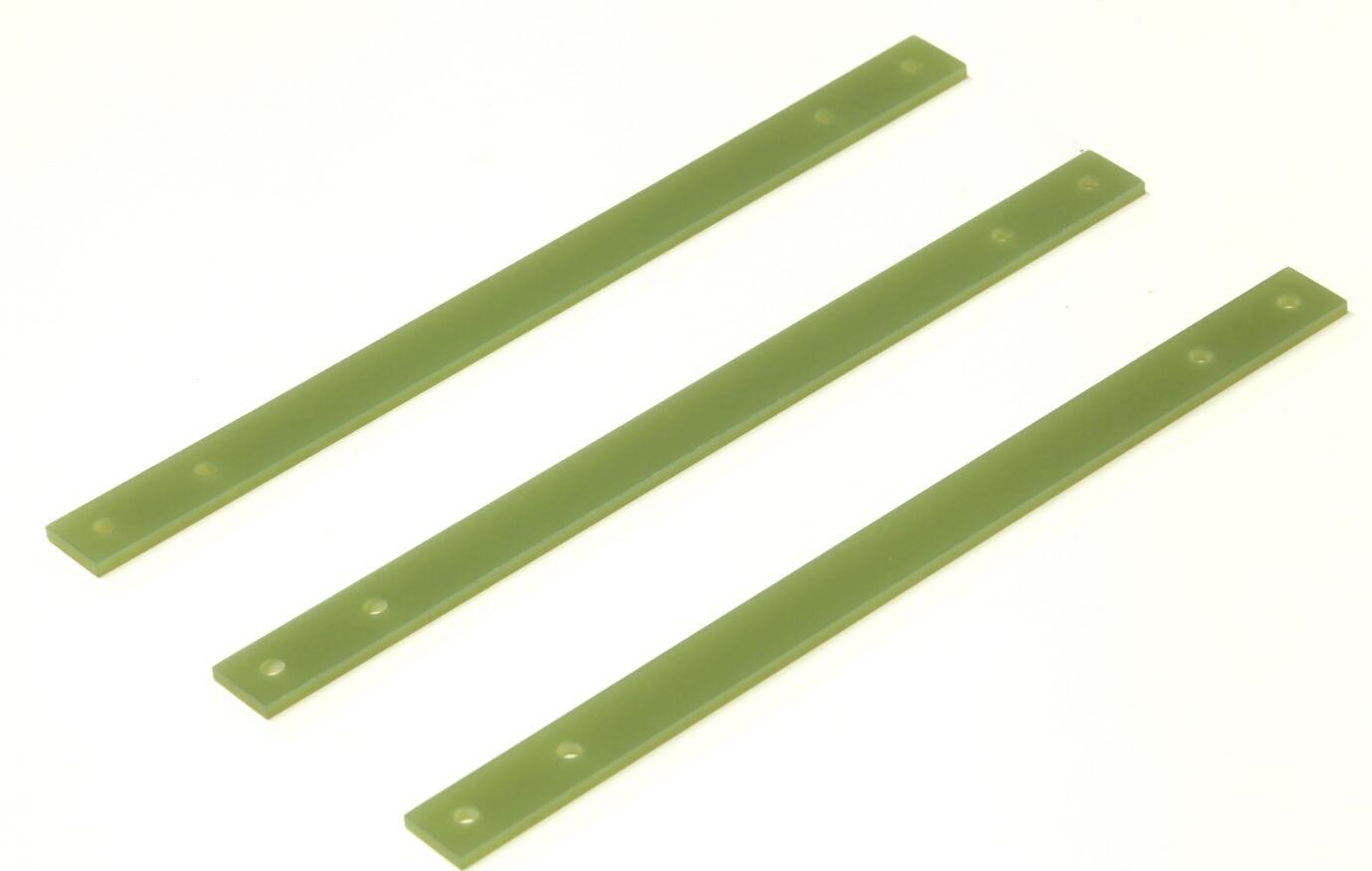

※Products can be supplied sheets or shapes according to customer drawing

※Note: The values noted in above technical specification are given only for our customers’

  reference and should not be used in writing specifications.

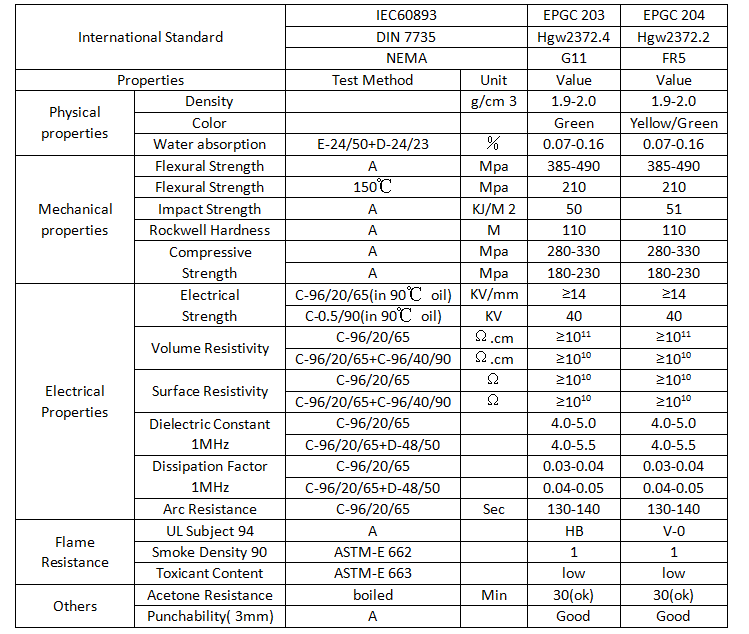

8.Technical Data:
