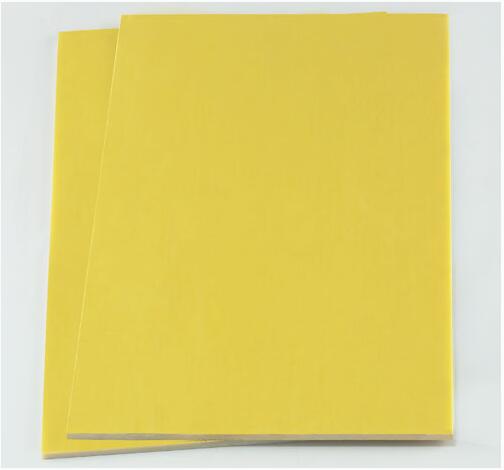

3240 Epoxy-phenolic glass cloth laminated sheet is made of alkali-free E-glass cloth impregnated with epoxy resins by processing under heat and pressure.
1.This product with high mechanical properties,High adhesion strength,have passed SGS hazardous material detection,apply to mechanical, motor, electrical equipment as insulation
2.Applications: With high mechanical strength, Insulation, heat resistance, electrical properties and good moisture resistance properties. Widely range of applications, for example: Suitable for using as insulating structural parts in electric equipment, such as electric generators, motors, switch board, etc.
3. Thickness: 0.2-100mm Size:; 1000x2000mm; 1200x2400mm Temperature grade:B glass(130℃) Color: yellow
4.The other size can be supplied according to customers' requests.

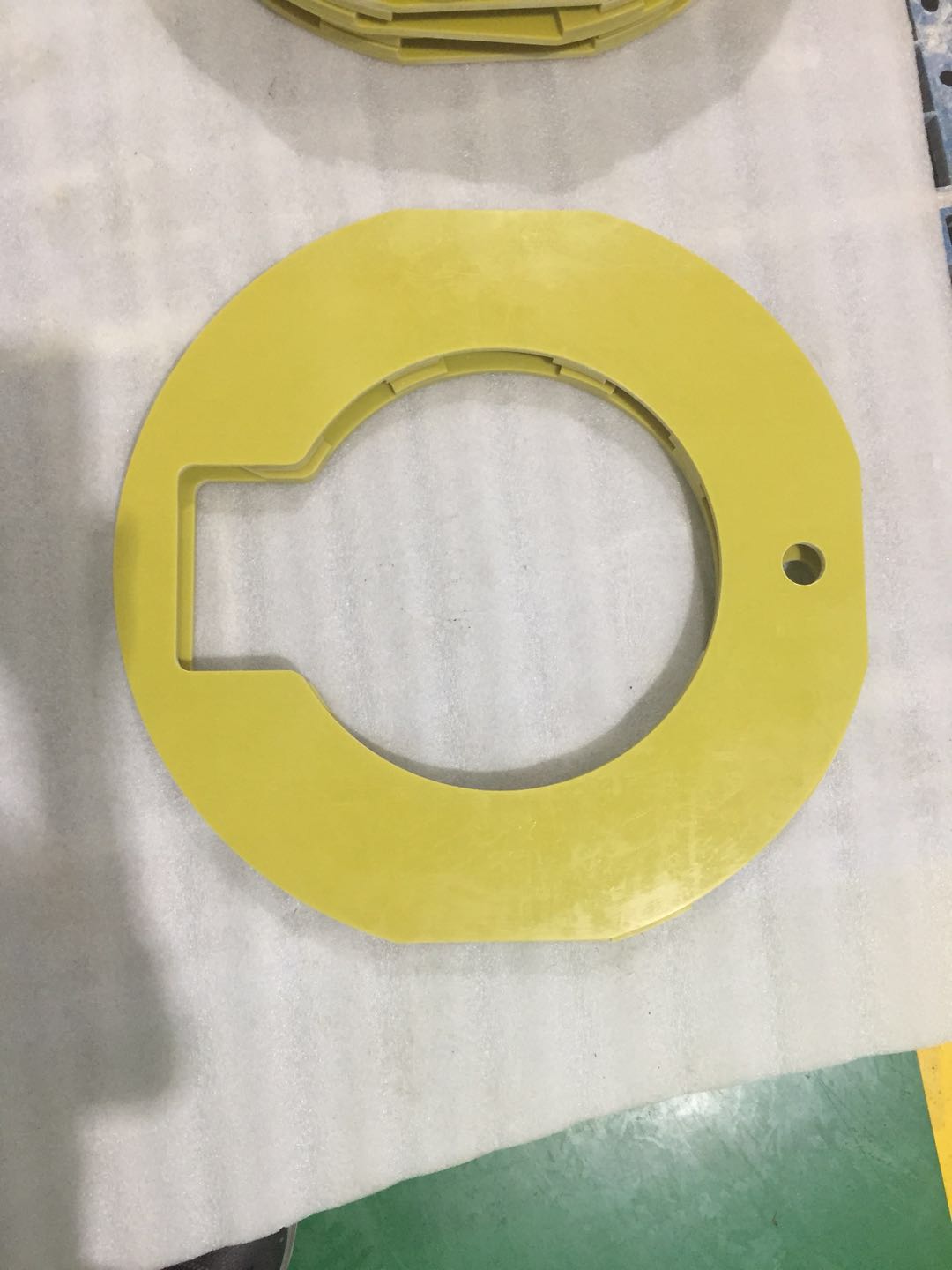

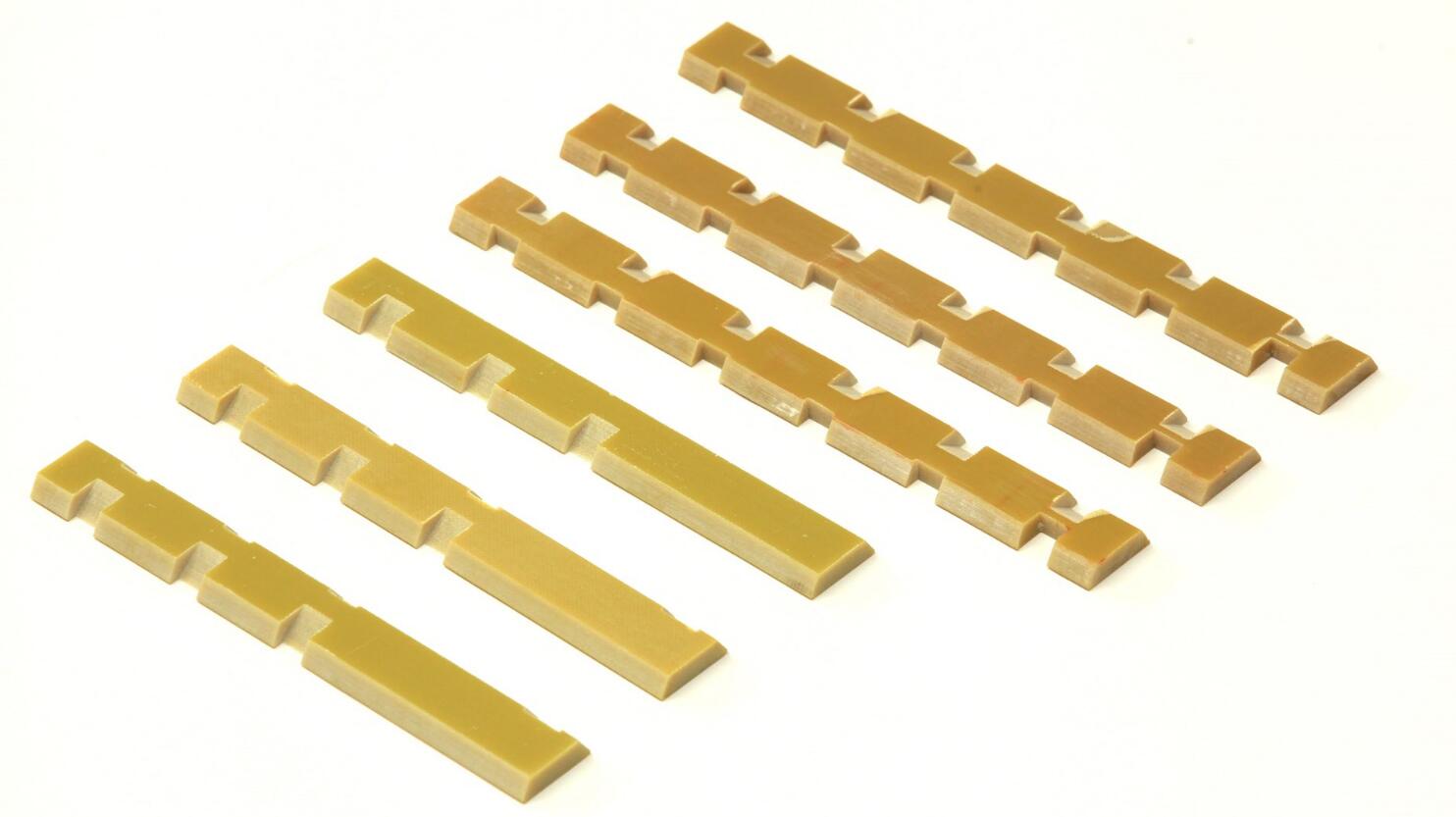

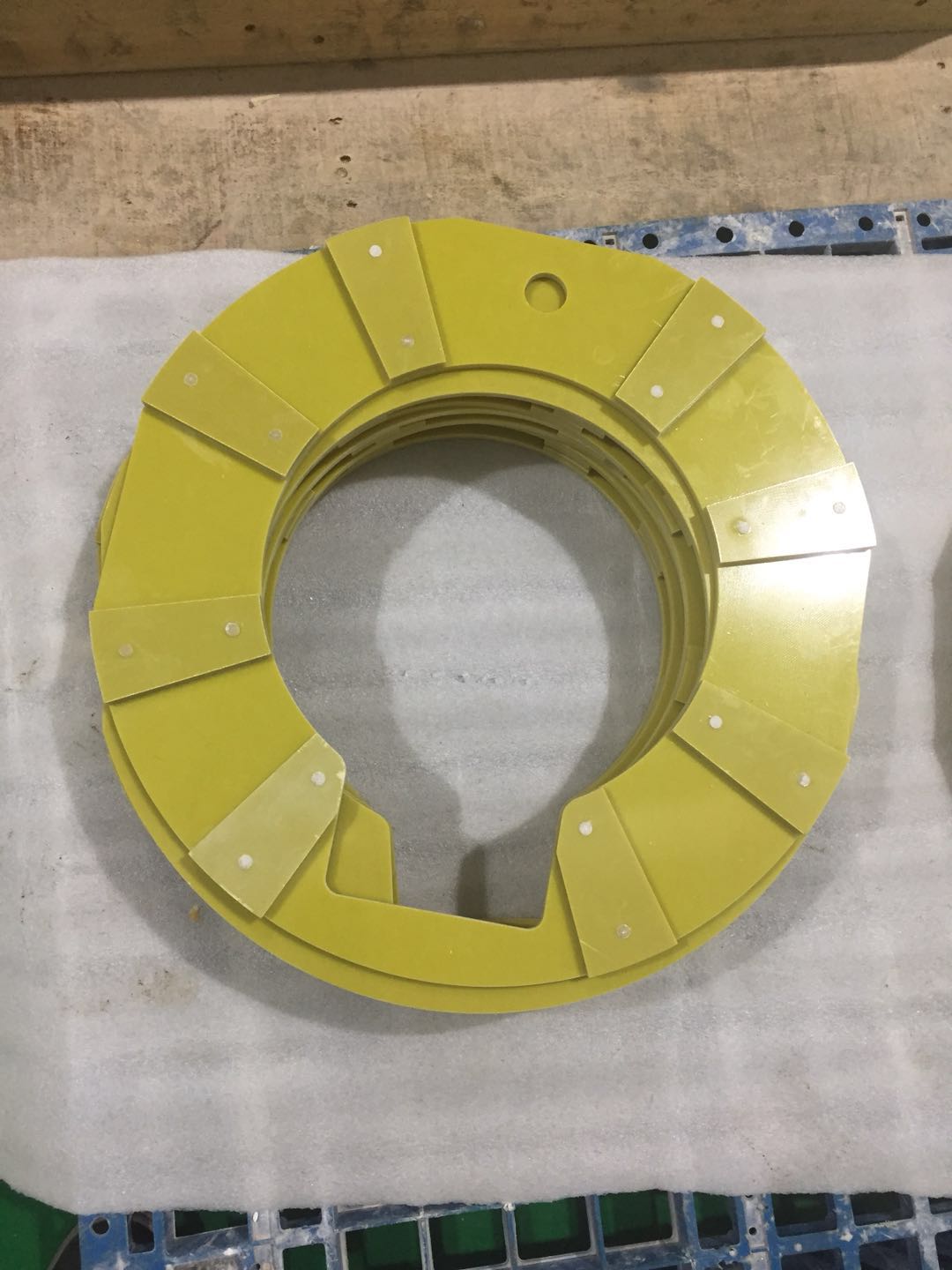

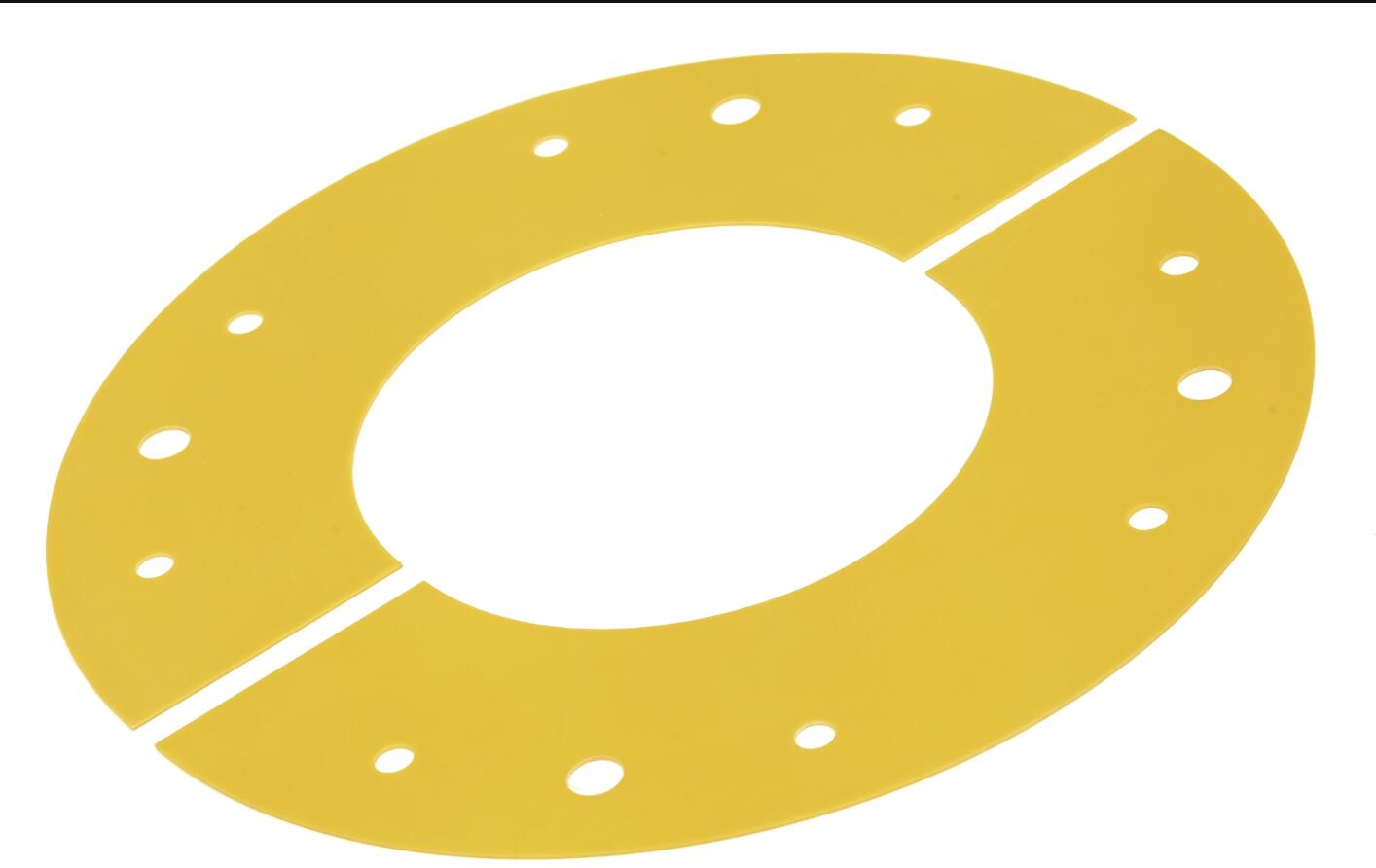

※Products can be supplied sheets or shapes according to customer drawing
※Note: The values noted in above technical specification are given only for our customers’ reference and should not be used in writing specifications.

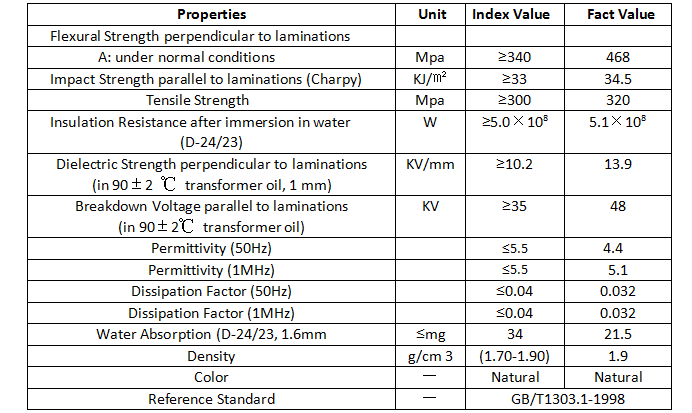

5.Technical data：
