G10 / EPGC201 and FR4 / EPGC202

1.G10 / EPGC201 and FR4 / EPGC202  have extremely high mechanical strength, good dielectric properties,

  good electric strength properties and fine heat and humidity resistance.

  In addition, FR4 sheet has anti-fire property.

  G10 is accordance with the following international standards:

  IEC60893 EPGC201/NEMA LI-1:G10/DIN 7735 HGW 2372/BS 3953 EP-3

  FR4 is accordance with the following international standards:

  IEC60893 EPGC202/NEMA LI-1:FR4/DIN 7735 HGW 2372.1/BS 3953 EP-4

2.Applications: With high mechanical strength, Insulation, heat resistance, electrical properties

   and good moisture resistance properties. Widely range of applications, for example: Suitable

   for using as insulating structural parts in electric equipment, such as electric generators,

   motors, switch board, PCB , etc.

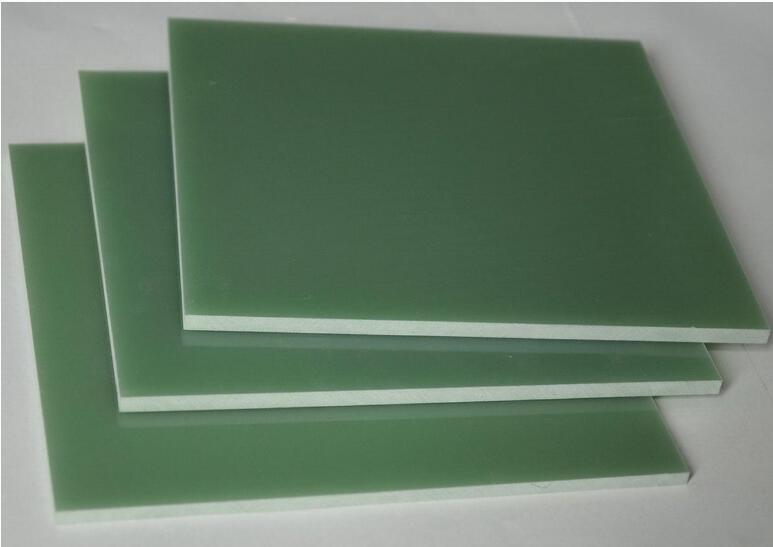

3.Thickness: 0.2-100mm Size: 1000x2000mm; 1200x2400mm;

4.Temperature grade: B glass(130℃).

   Color: green

5. The other size can be supplied according to customers' requests.

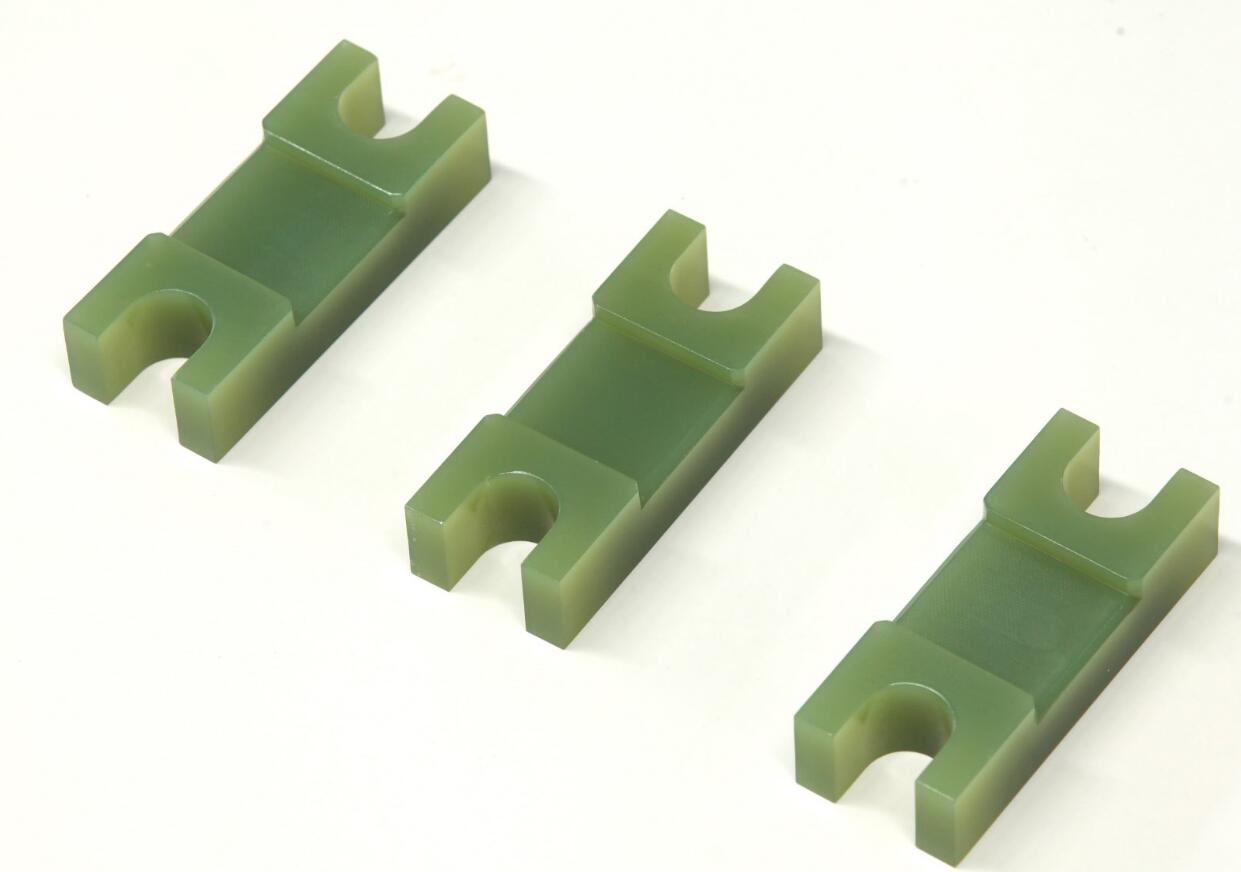

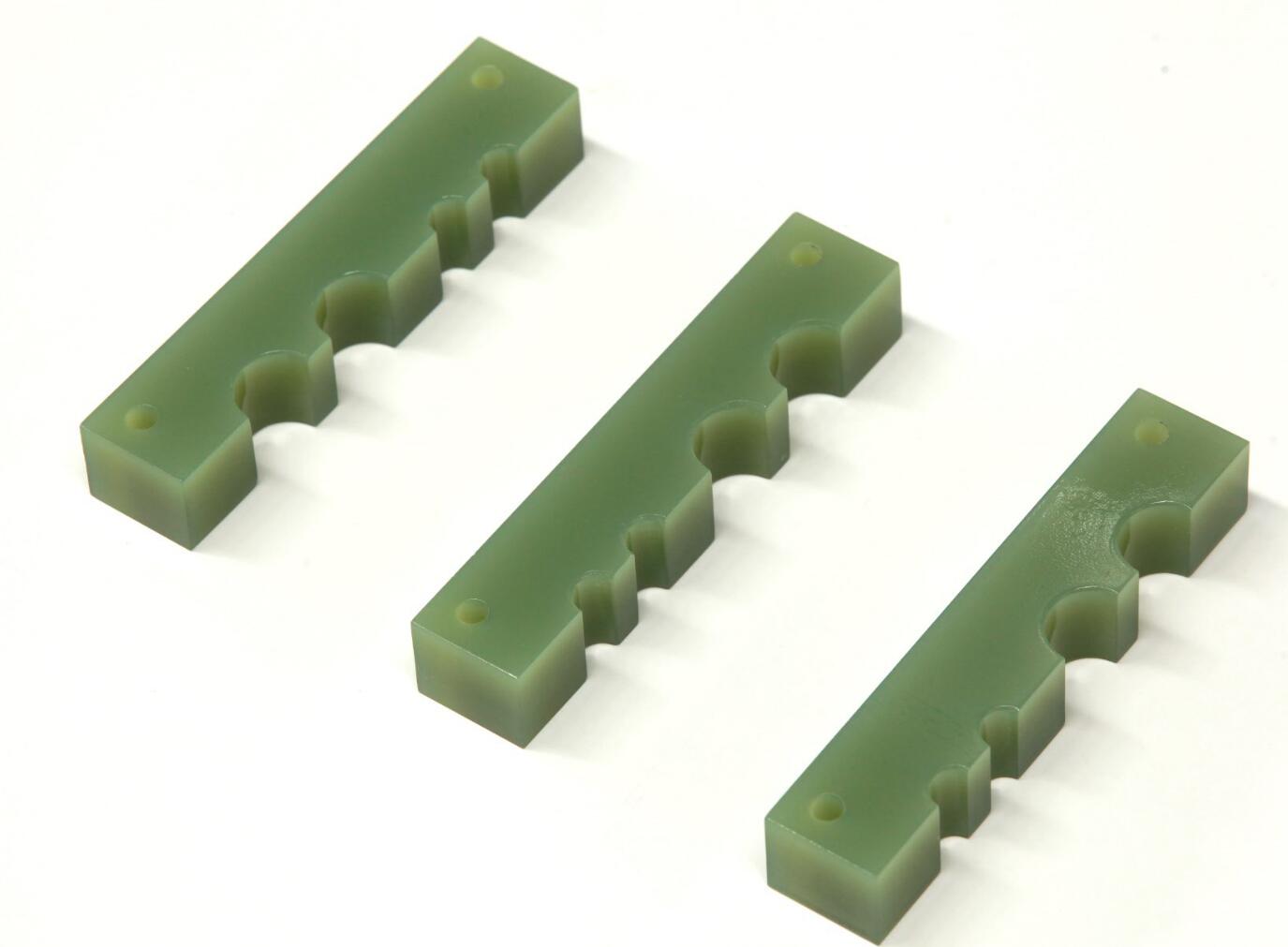

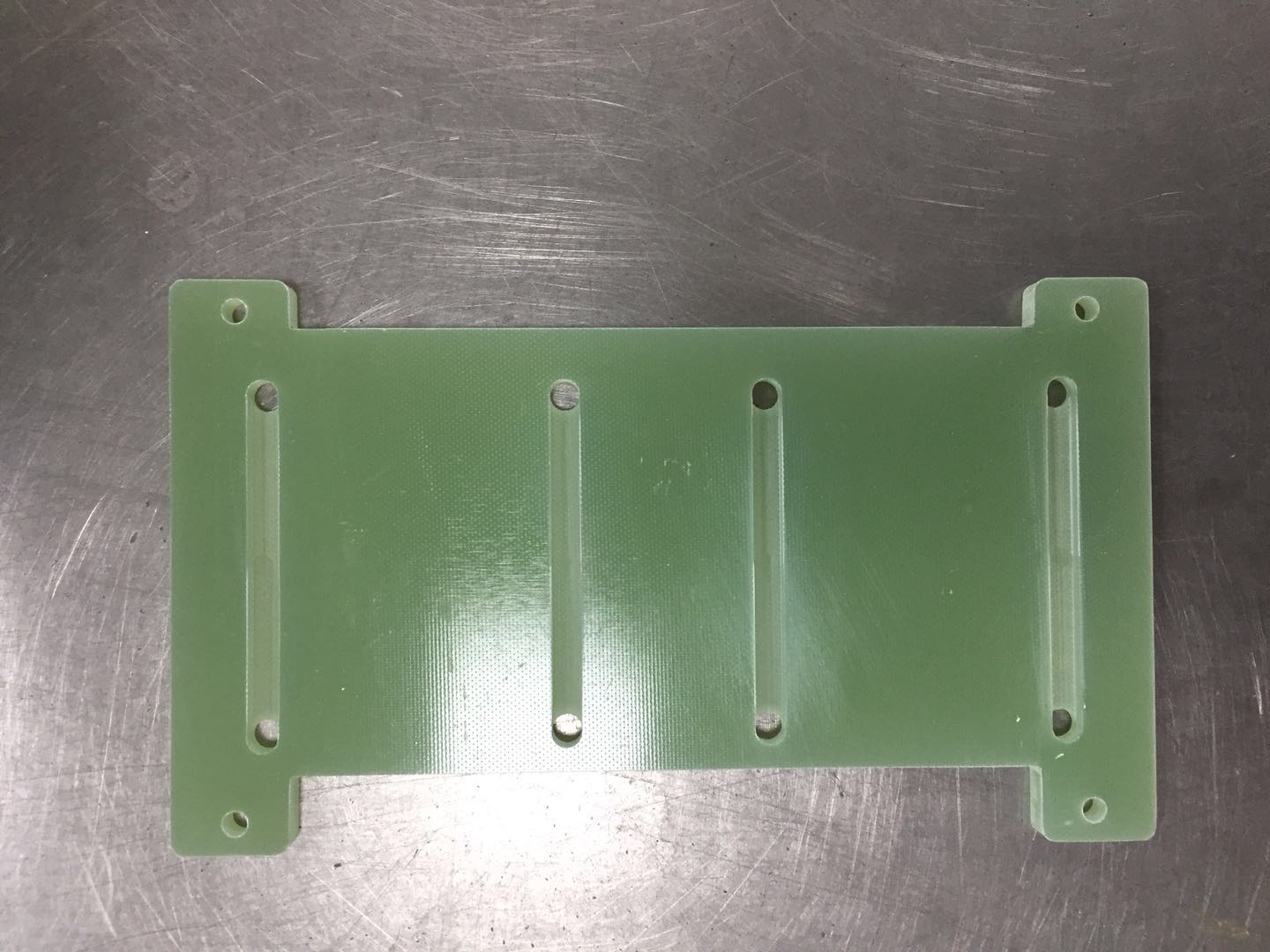

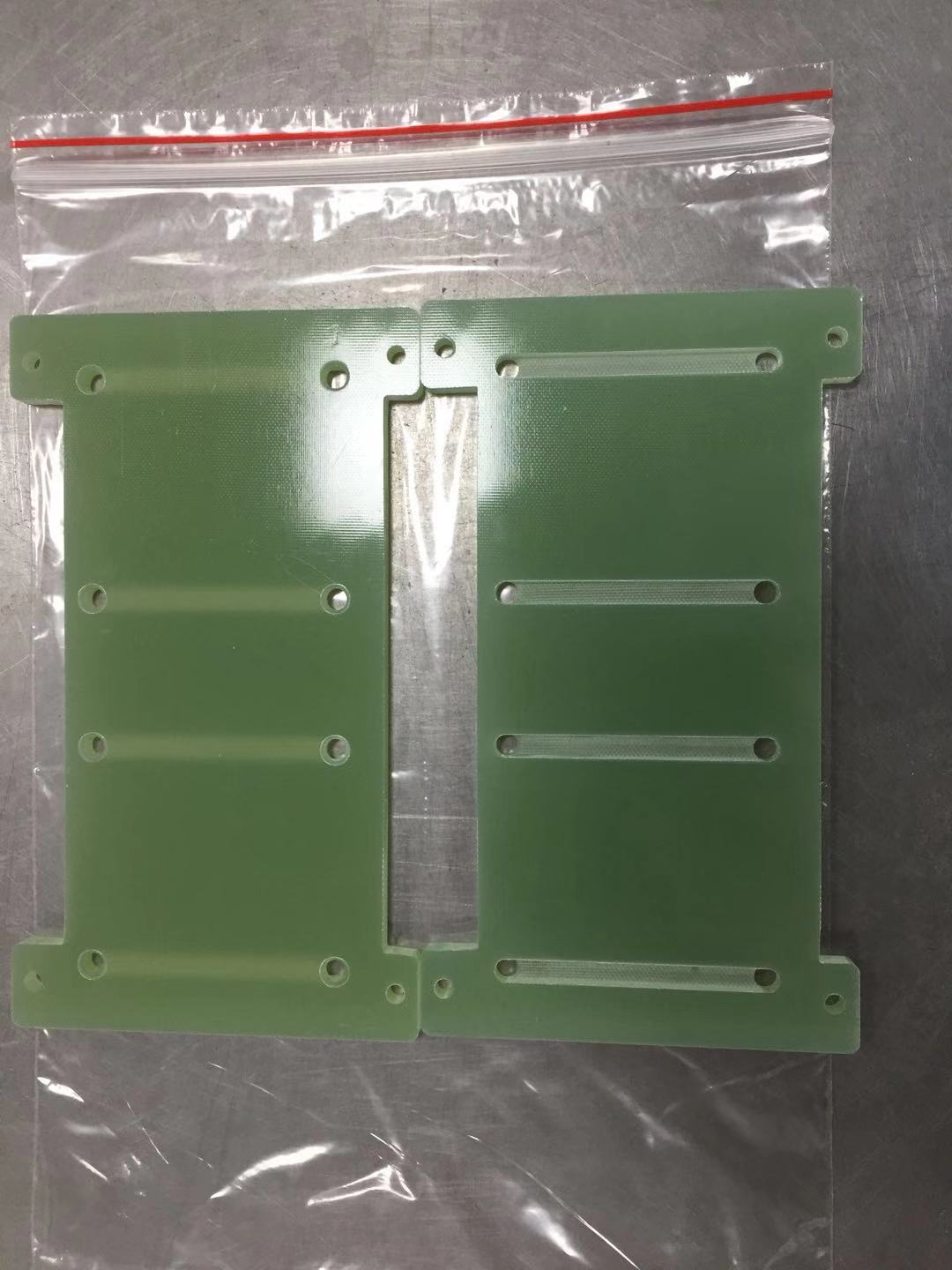

※Products can be supplied sheets or shapes according to customer drawing

※Note: The values noted in above technical specification are given only for our customers’reference and

   should not be used in writing specifications.

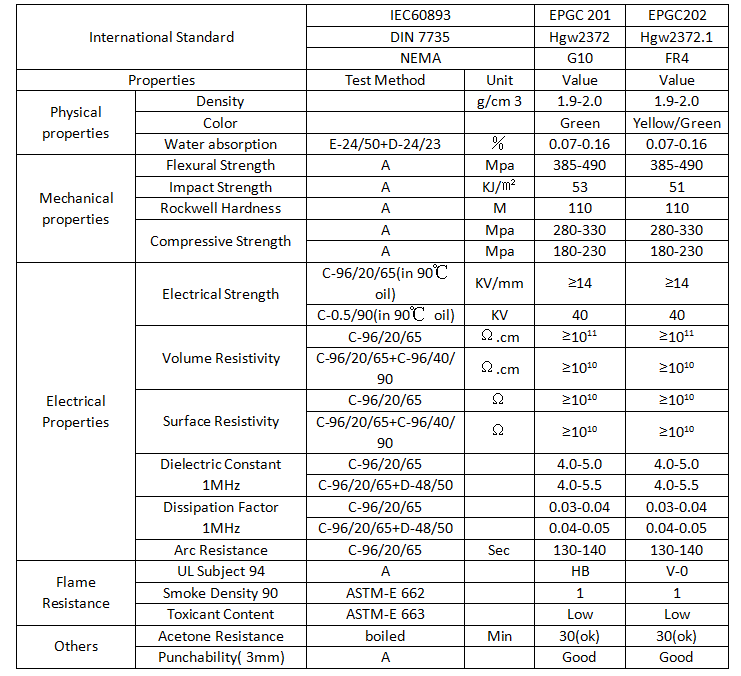

6.Technical data:
