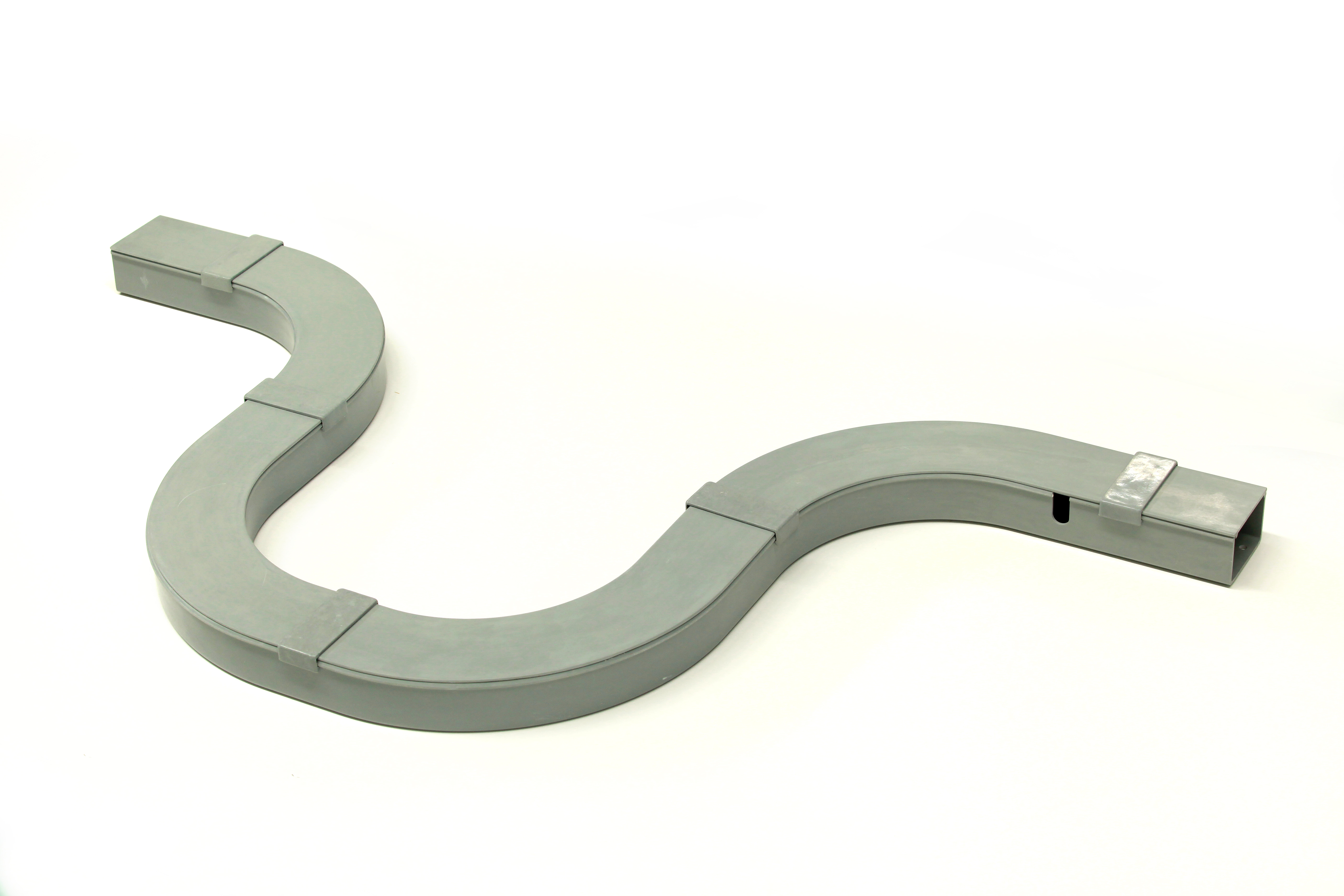

SMC machines parts are widely used in High, Medium, Low voltage electrical industries, like backplane of switch cabinet, support of transformer coil, resistors of automotive lamp, etc. It can tremendously reduce product costs by customized color and dimension on request.

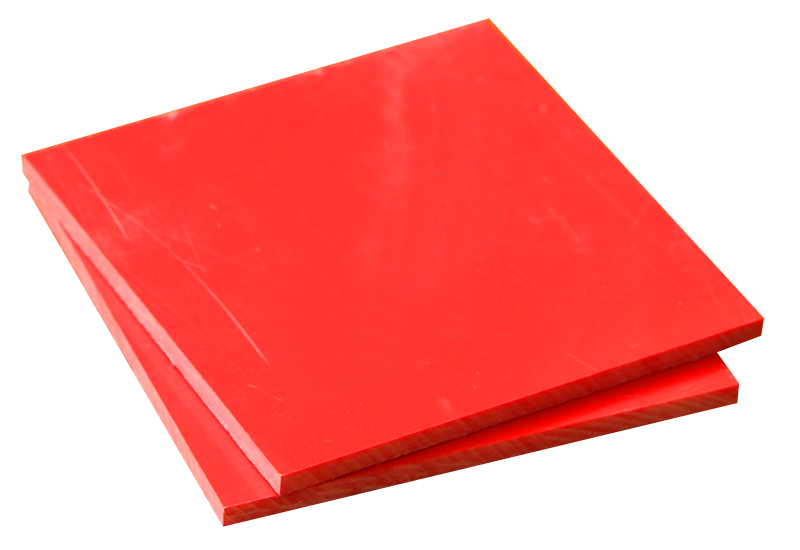

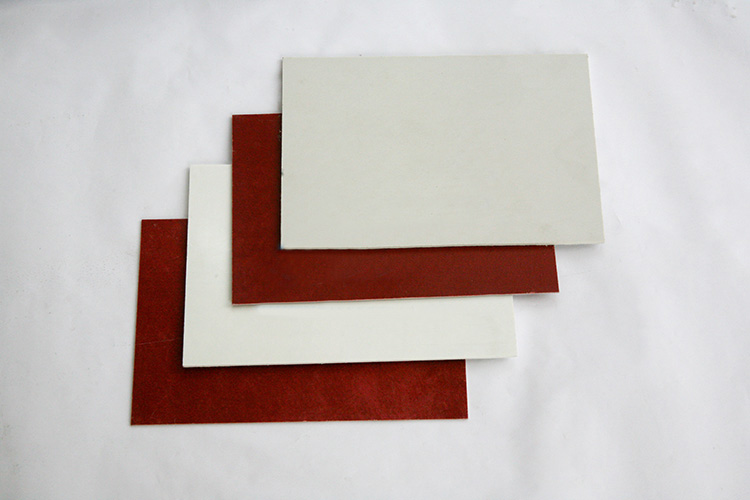

SMC rigid Insulating Sheet
SMC consists of unsaturated polyester resin (UP) with a reinforcement of glass fibres (GF) and rovings, molded under high temperature. It offers good electrical and mechanical properties, good performance against arc and tracking, toxic-free, flame resistant, low smoke, low water absorption, and stable dimensions.
SMC machines parts are widely used in High, Medium, Low voltage electrical industries, like backplane of switch cabinet, support of transformer coil, resistors of automotive lamp, etc. It can tremendously reduce product costs by customized color and dimension on request.
SMC is an ideal insulating material for applications requesting halogen-free and flame resistant.
Standard Sheet Sizes: 1000 X 2000mm，1010 X 2020mm，1250 X 2500mm
Thickness：2.0 - 60mm
Remarks: Specialized specifications can be customized.
