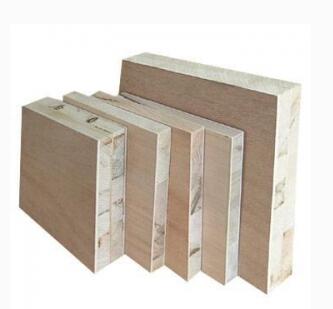

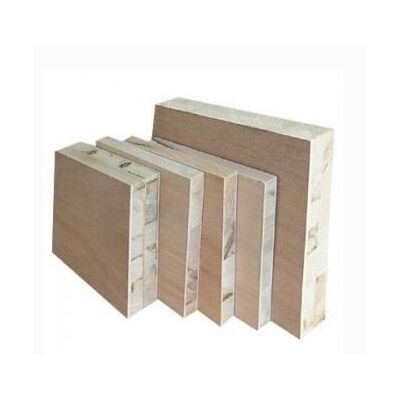

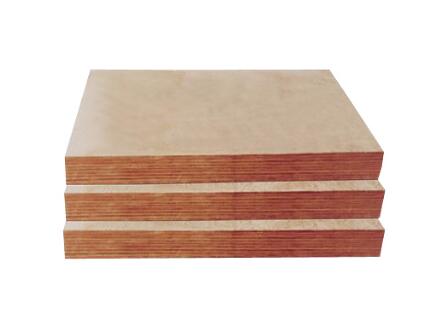

laminated wood sheet

1.Electrical laminated wood is widely used as insulating and supporting material in transformers and instrument transformers.

It has many virtues such as moderate specific gravity, high mechanical properties, easy vacuum drying, easy mechanical processing etc.

The dielectric constant of this material is close to transformer oil, so it makes a reasonable insulation match. And it can be used in transformer oil of 105℃ for long time.

2.People usually use this material to make upper/lower pressure pieces, cable supporting beams, limbs, spacer blocks in oil-immersed transformers,

 and clamps in instrument transformers. It replaced steel plates, insulating paper sheets, epoxy paper sheets,

epoxide woven glass fabric lamination in these fields, and cut down the material expenses and weight of transformers.

3.The raw materials of electrical laminated wood are high quality birch and willow timbers. After boiling, rotary cutting, drying,

 these timbers are made to veneers. At last the veneers will be glued with special insulating gluewater and processed under high temperature and pressure.
Veneer Max Specification: (length × width ×thickness)： 4200×3400×300（mm）

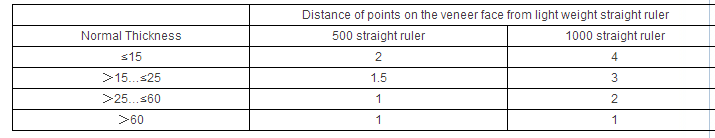

1、Boards Flatness（mm）

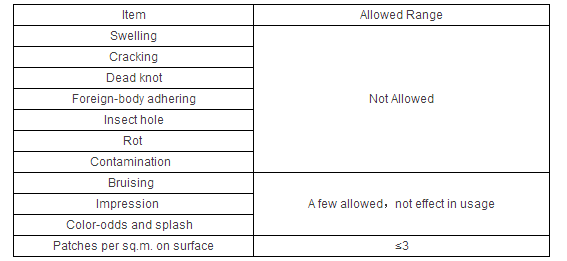

2、Surface Quality

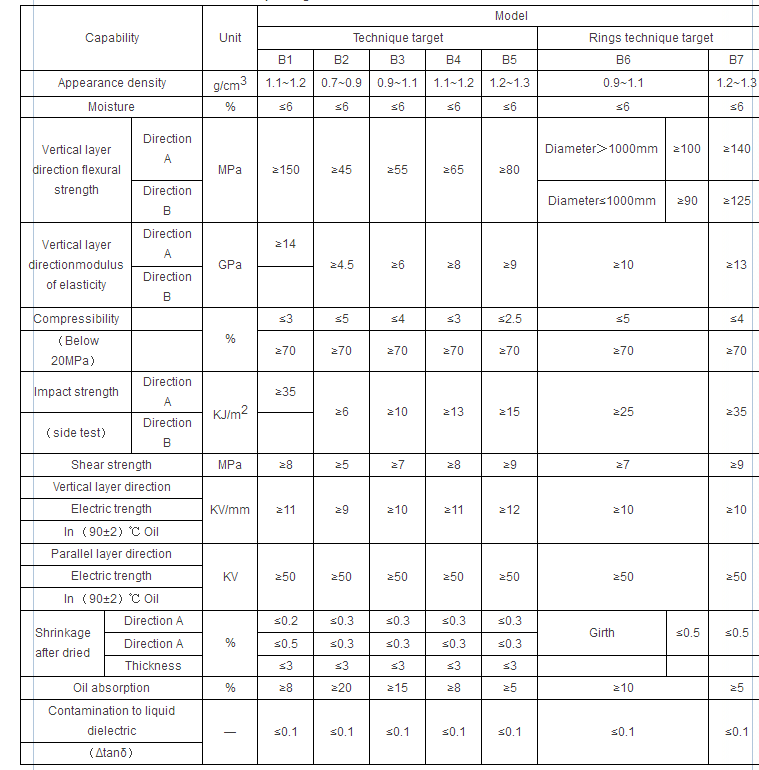

3、Electrical Laminated Wood Technique Target Table

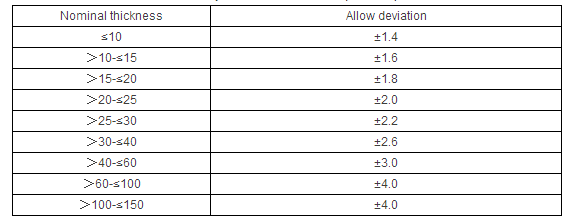

4:Nominal thickness and allow the permissible variations (unit mm)

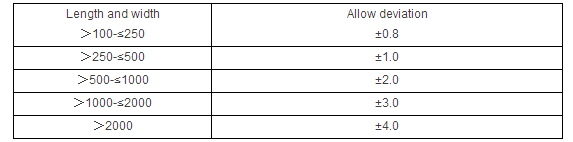

5：Plank nominal length and width and allow deviation (unit mm)

4、Packing:Packaged in wooden crates,wooden framed cases or other strong enough materials covered with

    moisture-proof material outside.Gross weight of each packaged not exceeds 3000kgs.

5、Storage:Products should be stored in a clean and dry room with temperature not exceeding 40℃ and

should be laid flat wise on a stepping-board which is at least 50mm from the ground, not close to fire,heat source and protected against moisture.
