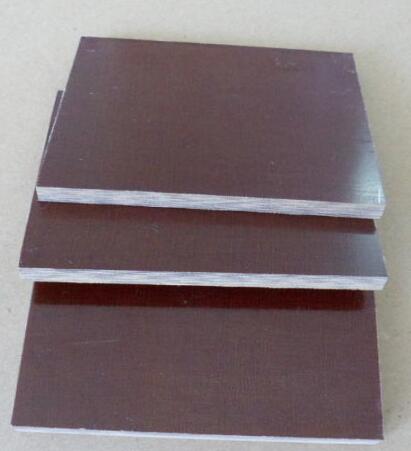

3025 phenolic cotton cloth sheet

1.3025A, 3025B, 3026, 3027 (China standard) is in accordance with C, CE, L, LE (NEMA Standard)

2. Application:

3025 Phenolic cotton cloth laminated sheets can be used for a construction material

as well as an electrical insulation material in various machines and equipments like gear running and friction wheel or friction surfaces.

3. Thermal grade：Class E (120℃).
4. Thickness: 0.5-120mm;         Size: 980x1980mm, 1020x2020mm, 1220x2440mm

5. Color: Brown

6. The other size can be supplied according to customers' requests.

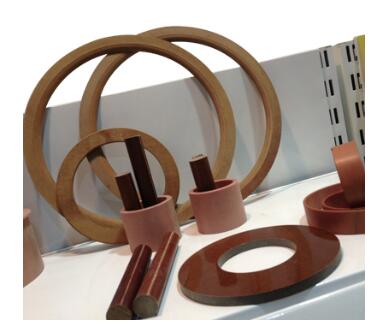

※Products can be supplied sheets or shapes according to customer drawing

※Note: The values noted in above technical specification are given only for our customers’ reference and

  should not be used in writing specifications.

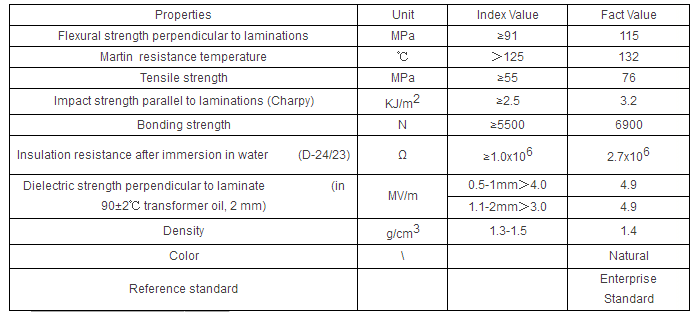

7.Technical data：
