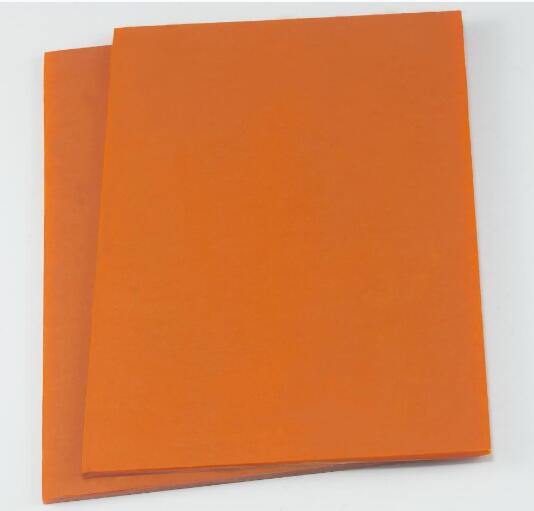

3021 Phenolic paper sheet

1. Application:

It is used for the insulating spare parts of electrical appliances and transformers, high mechanical properties electrical and mechanical devices.

3021A, 3021B, 3021C (China standard) is in accordance with X, XX, XXX, XP, XXP, XXXP, XPC (NEMA standard)

2. Thermal grade: class E.
3.Thickness : 0.5-100mm Size: 1020x2020mm,980x1980mm,1220x2440mm

4. Color: Brown

5. The other size can be supplied according to customers' requests.

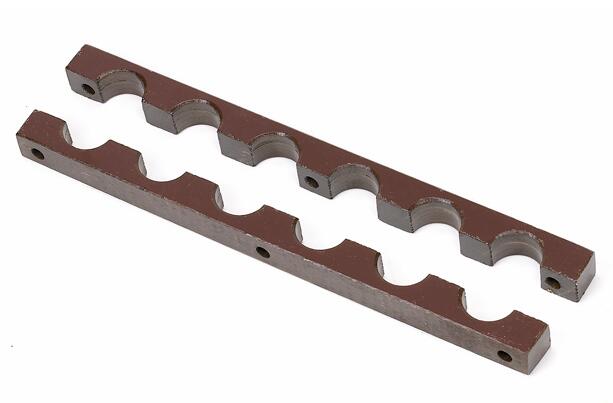

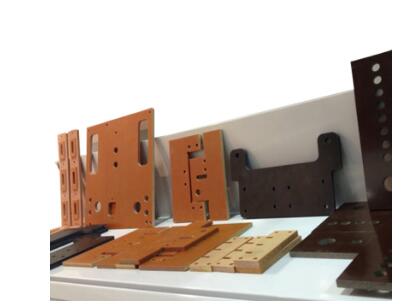

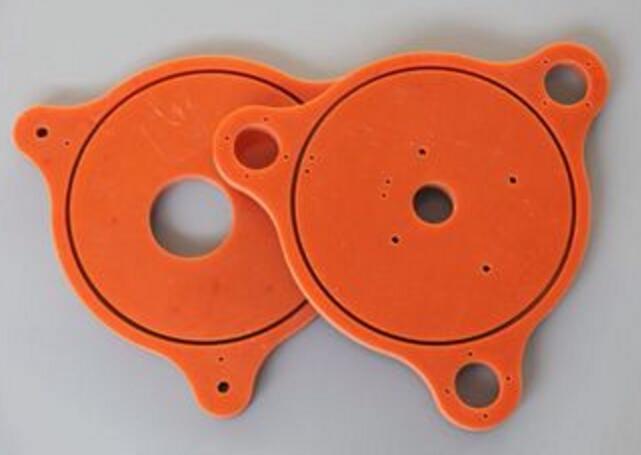

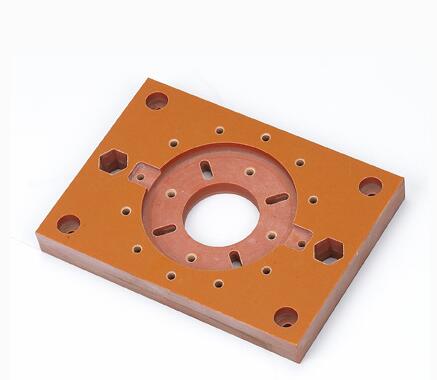

※Products can be supplied sheets or shapes according to customer drawing.

※Note: The values noted in above technical specification are given only for our customers’ reference and should not be used in writing specifications.

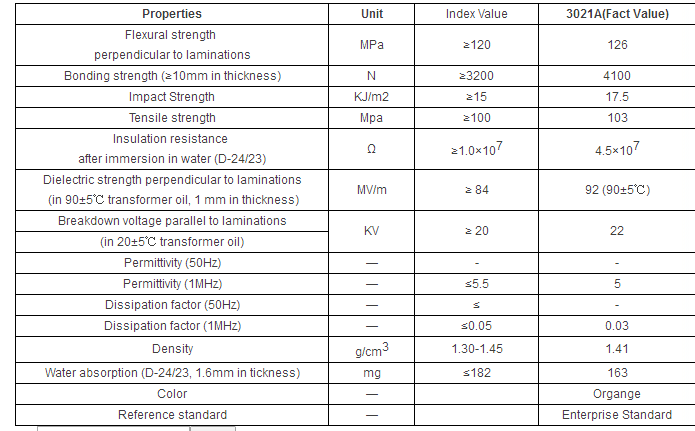

6.Technical data：
