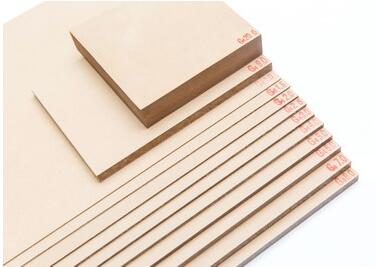

T4 pressboard

c

Transformer Insulation kit:

scarfed and rolled winding cylinders, Shielding end rings, Rings & segments, Plain, Trapezoidal & "T" runners,

Punched / milled winding blocks, Oil guiding washers / Angle rings & caps, Coil clamping rings, Bottom and top platforms,

 Block washers, Collar, Round rods, TG supports etc. as per customer drawing and requirements to IEC 60641

.We can offer self laminated press boards by using modified polyester glue and hot pressing.

2.3200*2100mm 4200*2100mm

3.Thickness:1.0-8.0mm

4.Color:Natural

※ other customized size of the purchase contracts

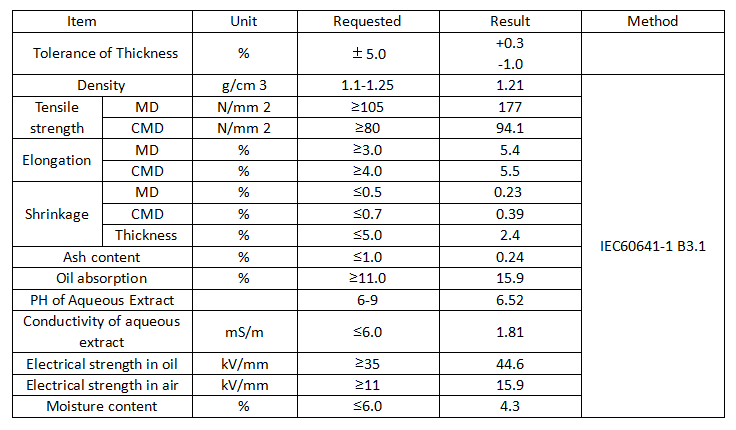

 3.0 thickness pressboard testing report:
